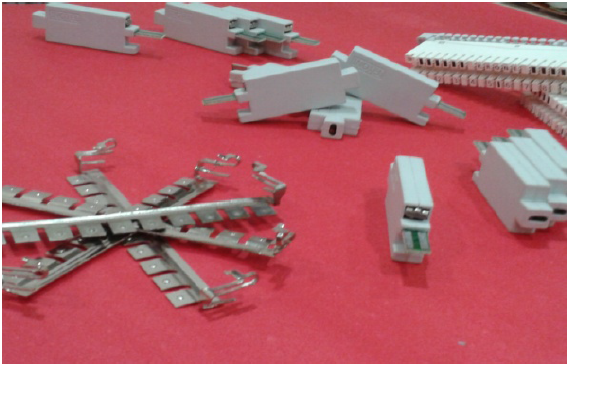

The Inotel Five stage Integrated Protection Modules (IPM) is used as a primary protection device against surges, short circuits, lightening etc in telephone distribution. The IPM is the first defence against these probable causes of damaging events.
| Single pair IPM with Primary and Secondary Protection directly mountable on 10 pair disconnection module. | |
| 5 stage is with both Common and Differential mode protection. | |
| Plastic body | FR Grade high quality material |
| Response time | 1 nanosecond |
| Impulse spark over voltag | 900 V at 1KV/u sec |
| Let through Voltage at 2K | 160V-170V (L-L,L-E) |
| 3 Pole GDT for over voltage protection | available |
| Nominal Current | 0 mA at 25 C |
| Insertion | 0.4db |
| Overload protection through 2xPTCs | available |
| Operating temperat | to +70 degree C |
| DC spark over Voltage | V ± 15 to 20% |
| IPM working/faulty analysis | through LED indication |
| Nominal Discharge Current per line | 0 KA, 8/20us |
| Humidity | % non-condensing |
